TC5T Hot Runner Temperature Controllers

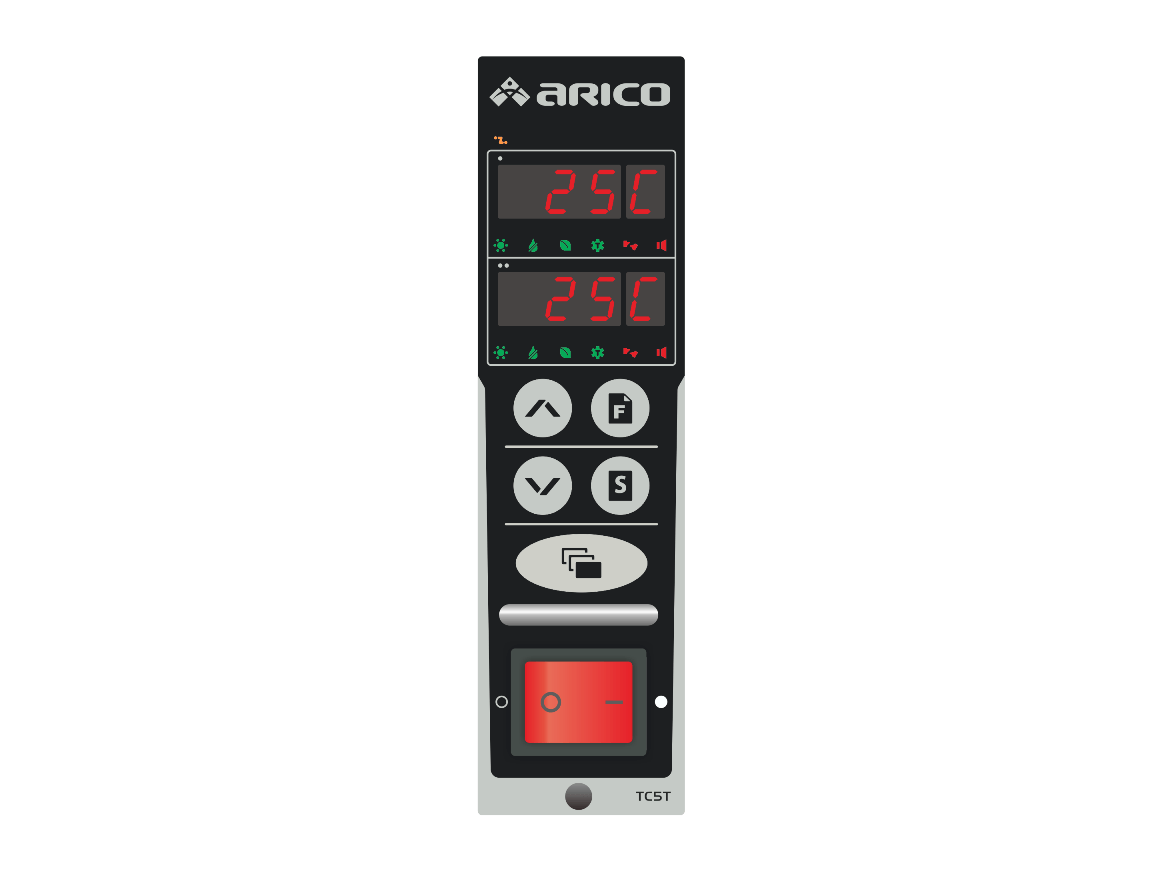

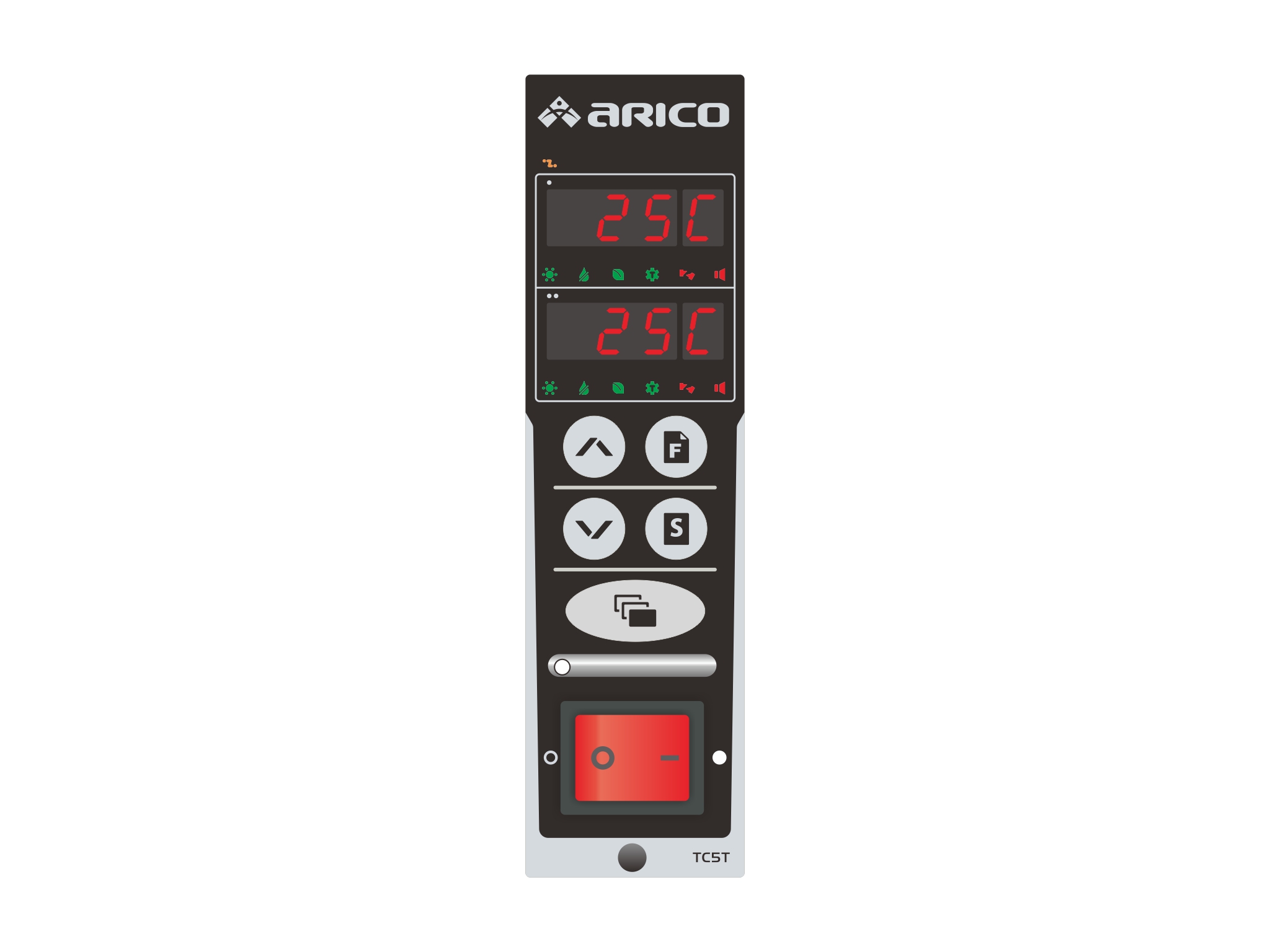

Overview
- The TC5T has the feature of single module control two points temperature, making the production process more intelligent.
- The settings for insulation and temperature rise can help to effectively control the temperature during the injection molding process. The machine has a built-in buzzer and smart soft start function, which can effectively reduce the impact during startup.
- The manual output in case of temperature sensor unusually and the output percentage limit setting are also highlights of its design, providing better protection for the equipment and improving production efficiency.
| TC5T | Module |
|
Number of Zones per Module |
2 zones |
|
Max. Current per Zone |
15A |
|
Input Power |
230Vac±10%, 50/60Hz |
|
Input Thermocouple Type |
J/K type |
|
Power Consumption |
230Vac: 3W |
|
Output Power |
3450W, 230Vac/15A(per zone) |
|
Output Mode |
Zero cross/Phase angle |
|
Control Accuracy |
±0.25% FS |
|
Measurement Accuracy |
±0.25% FS |
|
Temperature Control Range |
0~600°C/32~999°F |
|
Storage Temperature |
-20~70°C/-4~158°F |
|
Operating Temperature |
-10~50°C/14~122°F |
|
Operating Humidity |
0~80% RH(no condensate) |
|
Communication Mode |
RS-485(standard MODBUS)optional |
|
Communication Speed |
9600/19200/38400/57600/115200 |
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
|
Detection Functions |
Current/Fuse open-circuit/TRIAC Short-Circuit Detection |

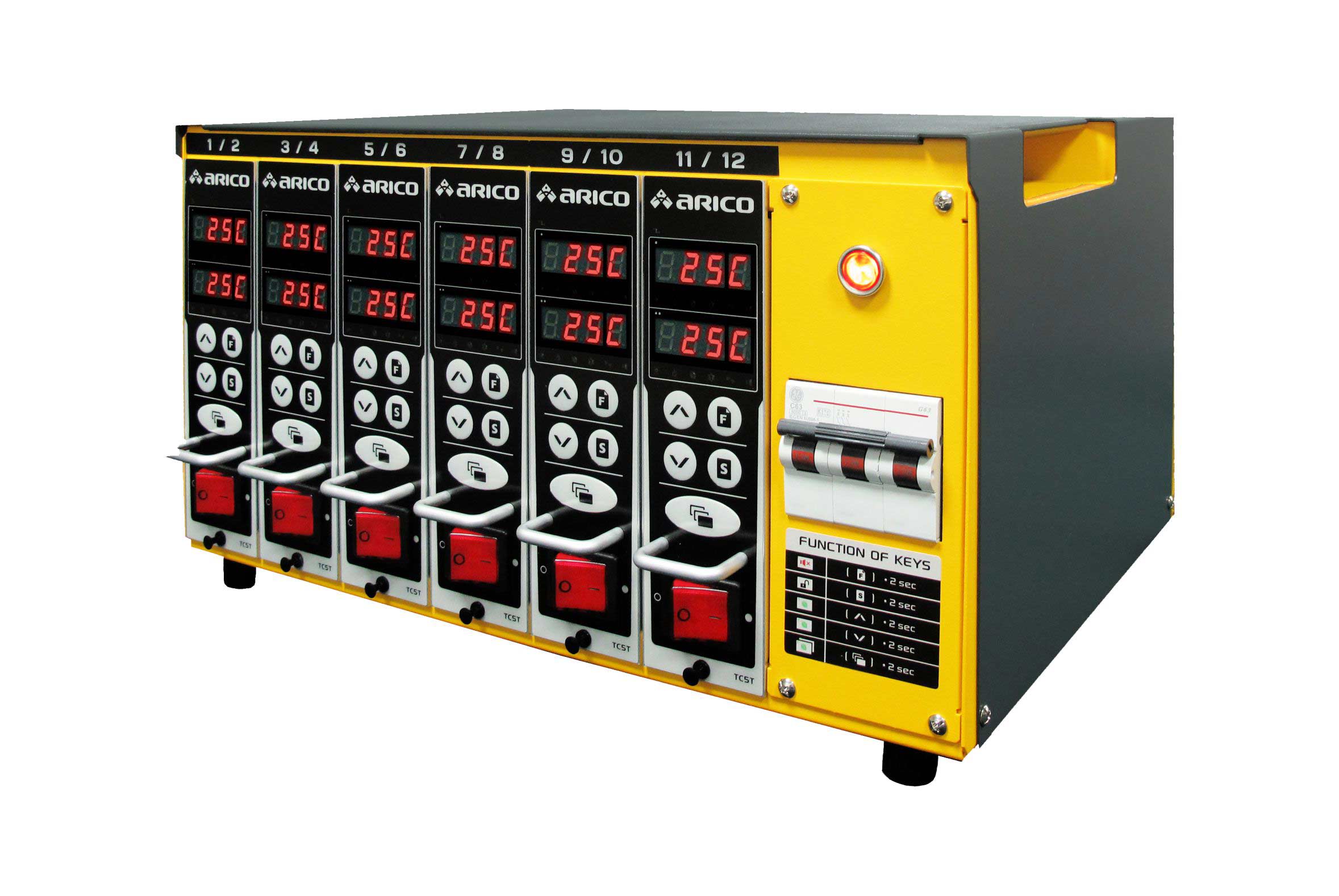

| TC5T |
TC5T-1(2 zones) |
TC5T-2(4 zones) |
TC5T-4(8 zones) |
TC5T-6(12 zones) |
TC5T-8(16zones) |
| Type | T5B02 | T5B04 | T5B08 | T5B12 | T5B16 |
| Power Switch Capacity(A) | 32 | 32 | 63 | 63 | 63 |
| Output Connector | 16pins×1 | 16pins×1 | 16pins×2 | 24pins×2 | 24pins×2 |
| Power Cable | 5.5mm²×5C×3M | 5.5mm²×5C×3M | 8mm²×5C×3M | 8mm²×5C×3M | 8mm²×5C×3M |
| Easy Input Switching | Yes | Yes | Yes | Yes | Yes |

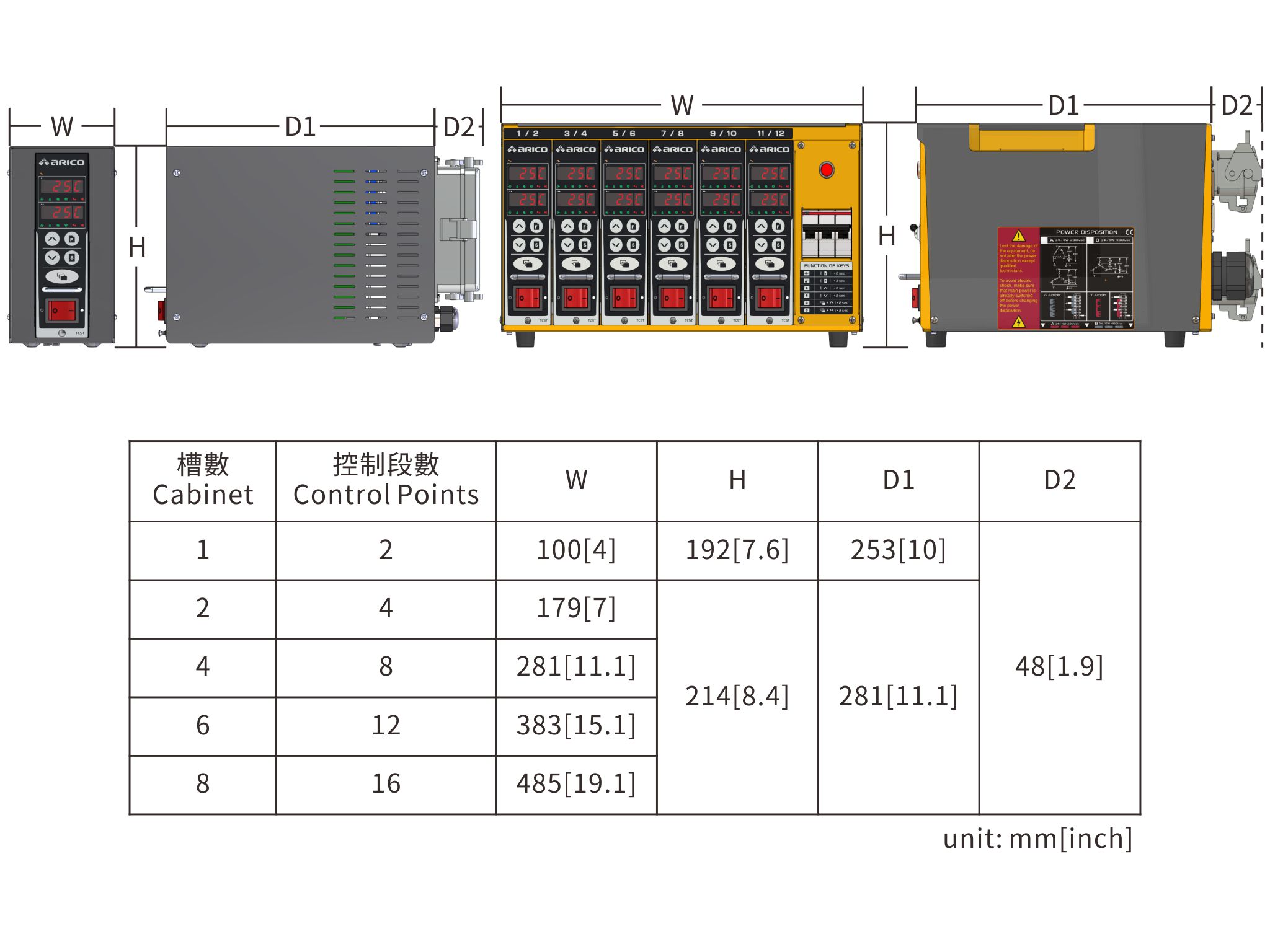

| Dimension W×H×D(mm) | 100×192×301 | 179×214×329 | 281×214×329 | 383×214×329 | 383×214×329 |
| Specs/Model | TC5T |
TC5H |
TC5E Plus |
TC5E |
|
Number of Zones per Module |
2 zones |
1 zone |
||
|
Max. Current per Zone |
15A |
|||
|
Input Power |
230Vac±10%, 50/60Hz |
|||
|
Input Thermocouple Type |
J/K type |
|||
|
Power Consumption |
230Vac: 3W |
|||
|
Output Power |
3450W, 230Vac/15A(per zone) |
|||
|
Output Mode |
Zero cross/Phase angle |
|||
|
Control Accuracy |
±0.25% FS |
|||
|
Measurement Accuracy |
±0.25% FS |
|||
|
Temperature Control Range |
0~600°C/32~999°F |
|||
|
Storage Temperature |
-20~70°C/-4~158°F |
|||
|
Operating Temperature |
-10~50°C/14~122°F |
|||
|
Operating Humidity |
0~80% RH(no condensate) |
|||
|
Communication Mode |
RS-485(standard MODBUS)optional |
× |
||
|
Communication Speed |
9600/19200/38400/57600/115200 |
× |
||
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
Ceramic fuse |
||
|
Detection Functions |
Current/Fuse open-circuit/TRIAC Short-Circuit Detection |
Fuse open-circuit |
||
Hot Runner Temperature Controller FAQ(TC5T)
Q1: What is the defining characteristic of the TC5T series?
A1: The TC5T excels with its 2-zones-per-module design, allowing for higher density within the controller cabinet.
Q2: How can heater damage be effectively prevented?
A2: The entire series comes standard with a Soft Start function. During the initial startup phase, it utilizes pulse power delivery to eliminate moisture and mitigate inrush current, effectively extending the heater's operational lifespan.
Q3: What is the maintenance procedure if a module malfunction occurs?
A3: The entire series features a plug-in module design. Maintenance personnel only need to remove and replace the faulty module while the power is off. This process requires no rewiring, minimizing downtime.
Q4: How does the TC5T ensure safety in high-density layouts?
A4: Despite its integrated design, it includes a built-in buzzer and full diagnostics (current, fuse-break, and TRIAC short-circuit detection), meeting strict industrial safety standards.
