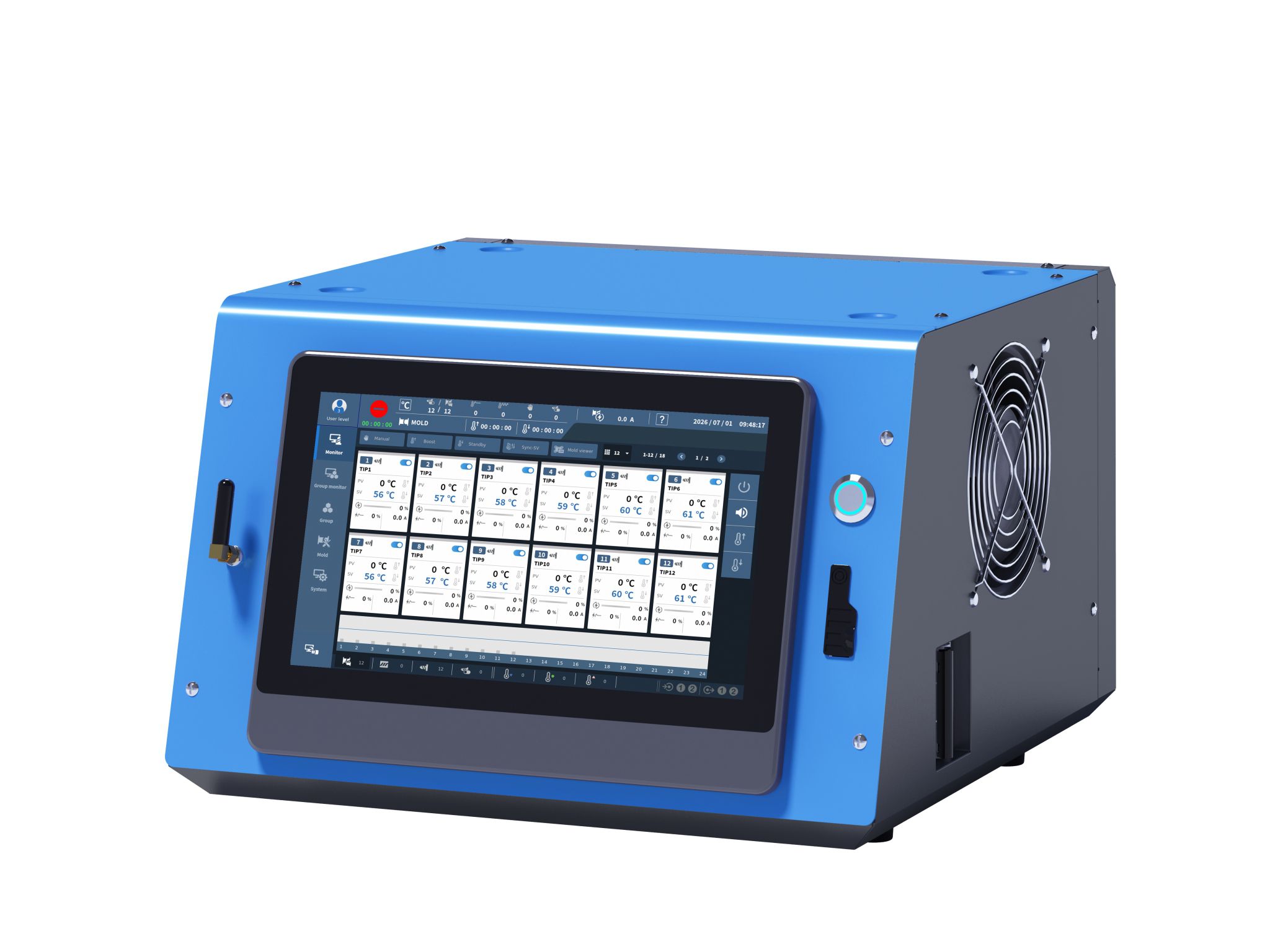

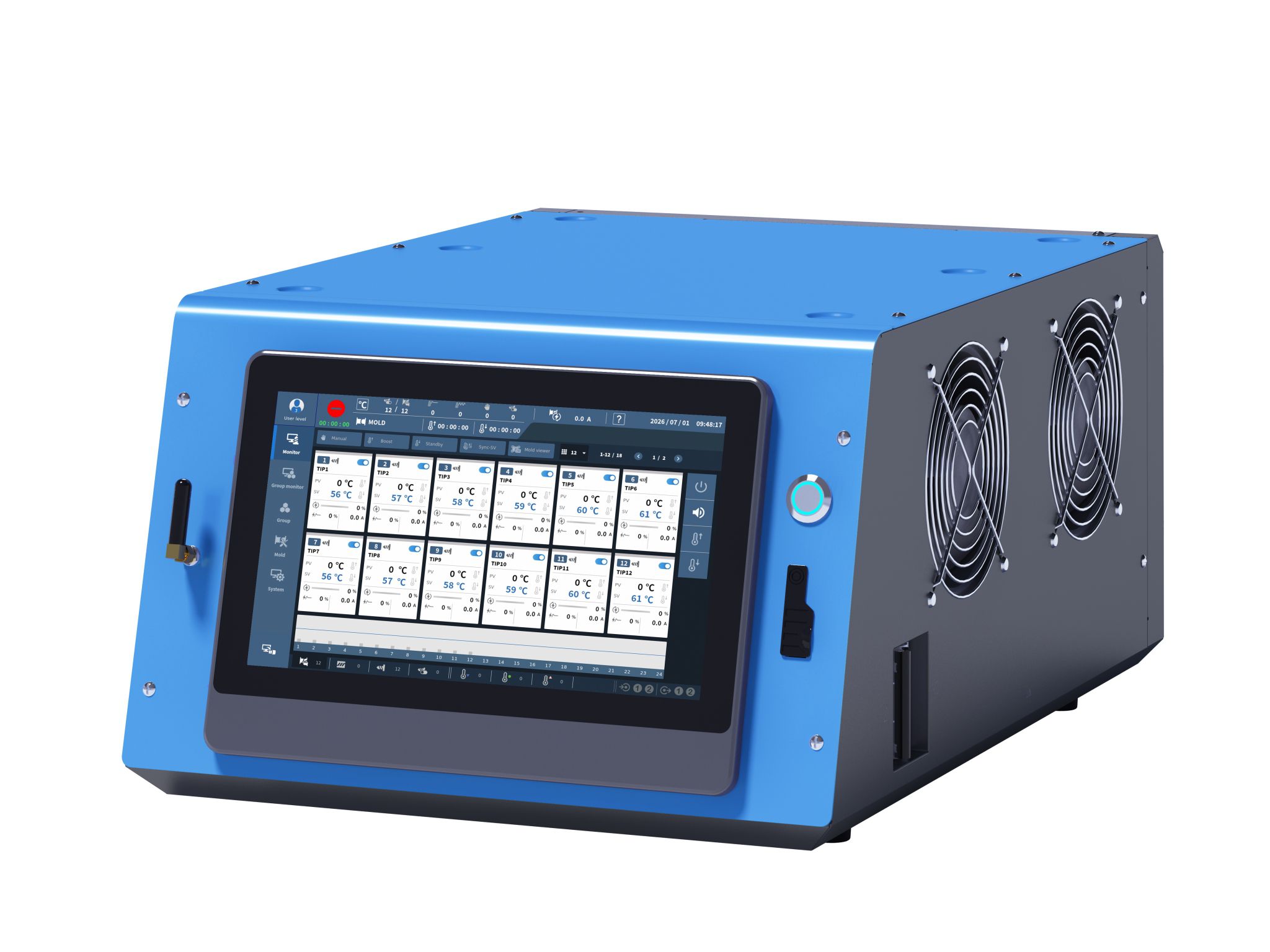

TC53 Hot Runner Temperature Controller

Overview

TC53 hot runner temperature controller is a high-performance temperature control solution specifically designed for the modern plastic injection molding industry.
Combining high cost-performance with a highly flexible modular configuration, this product meets the diverse temperature control demands of precision molds while helping injection molding plants reduce equipment investment and enhance overall productivity.
By integrating advanced intelligent monitoring and IoT connectivity, the TC53 deeply optimizes thermal management and mold status tracking during the injection process, laying a solid hardware and communication foundation for plastics processing enterprises moving toward smart manufacturing and Industry 4.0.

+ Add to Inquiry

High cost-performance and modular configuration: Features a flexible modular design, delivering exceptional temperature control performance at a competitive price to significantly reduce initial investment costs.
Predictive leakage detection with early alarms: Built with an intelligent early warning mechanism that monitors and predicts potential material leakage risks, issuing proactive alarms before anomalies occur to prevent costly downtime and mold damage.
Automatic mold recognition for fast parameter loading: Equipped with automatic mold recognition capabilities, it rapidly loads corresponding parameters during mold changeovers, drastically reducing setup time and minimizing manual configuration errors.
Intuitive mold views to accelerate anomaly detection: Provides a graphical and intuitive mold view interface, allowing operators to grasp temperature control statuses across zones at a glance to quickly pinpoint and accelerate anomaly detection and troubleshooting.
OPC UA support for smart factory networking: Fully supports the industrial communication standard OPC UA protocol, effortlessly achieving comprehensive networking and data transparency.

TC53	Module
Number of Zones per Module	2 zones
Max. Current per Zone	15A
Input Power	230Vac±10%/24Vdc±5%, 50/60Hz
Input Thermocouple Type	J/K type
Output Power	3450W, 230Vac/15A(per zone)
Output Mode	Zero cross/phase angle
Control Accuracy	±0.25% FS
Measurement Accuracy	±0.25% FS
Temperature Control Range	0~600°C/32~999°F
Storage Temperature	-20~70°C/-4~158°F
Operating Temperature	-10~50°C/14~122°F
Operating Humidity	0~80% RH(non-condensing)
Communication Mode	RS-485(standard MODBUS, isolating)/UART
Communication Speed	38400/57600
Temperature Alarm Mode	Upper limit/lower limit/standby upper limit/standby lower limit/absolute value alarm
Abnormal Alarm	Thermocouple: short/break/reverse; Heater: short/break/overload; TRIAC: short; Fuse open-circuit
Fuse	Quick response ceramic 500Vac/20A, 30mm
Detection Functions	Temperature detection/current detection/overvoltage protection(≧ 280Vac start)

Hot Runner Temperature Controller FAQ(TC53)

Q1: What are the primary applications of the TC53 Hot Runner Controller?
A1: The TC53 series is specifically designed for small-scale molds or systems requiring 1-2 control zones. It focuses on providing a stable and highly cost-effective thermal control solution for precision injection molding in compact production environments.

Q2: How does the TC53 protect the mold and extend heater lifespan?
A2: It features an integrated Soft Start function to mitigate inrush current during cold starts, protecting the heaters. It also provides comprehensive load monitoring and short-circuit protection to ensure operational safety within a budget-friendly framework.

Q3: Is the maintenance cost high if a TC53 unit fails?
A3: Not at all. The TC53 utilizes a stand-alone modular design. In the event of an abnormality, technicians can quickly swap out the individual controller without a full system overhaul or complex rewiring, significantly lowering long-term maintenance expenses.

Q4: What is the temperature control performance of the TC53 series?
A4: The TC53 is powered by industrial-grade PID Auto-tuning technology, delivering excellent measurement and control accuracy. Even as an economical model, it ensures stable thermal output to maintain consistent part quality.

Q5: What are the features of the TC53's user interface?
A5: The TC53 utilizes an all-digital display interface, replacing traditional complex physical buttons with a sleek, minimalist layout. This allows operators to read key data directly and get started quickly without complicated configurations, improving parameter setting efficiency.

Q6: How does the TC53's hardware design enhance cost-effectiveness?
A6: The TC53 adopts a highly efficient modular mechanical design, significantly reducing component complexity and hardware costs. This integrated structure maintains stable performance while allowing manufacturers to achieve flexible space allocation and expansion within a limited budget.

Q7: How to identify system abnormalities quickly via the TC53?
A7: The digital panel displays real-time alarm codes (such as thermocouple or heater failures). This intuitive mechanism enables operators to identify issues and perform troubleshooting instantly, even without extensive electrical expertise.

Q8: How does the TC53 reduce the risk of mold damage?
A8: Built-in Leakage Detection monitors abnormal current changes and provides early warnings to help prevent costly repairs and production downtime.

Q9: What are the visual features of the TC53 UI?
A9: The large full-color touchscreen provides intuitive operation. Graphical Mold View combines mold images with temperature data to clearly display Heat Distribution.

Q10: How does the TC53 improve maintenance efficiency?
A10: With VNC remote access, technicians can check parameter changes and alarm history remotely, enabling faster troubleshooting and more efficient maintenance.
