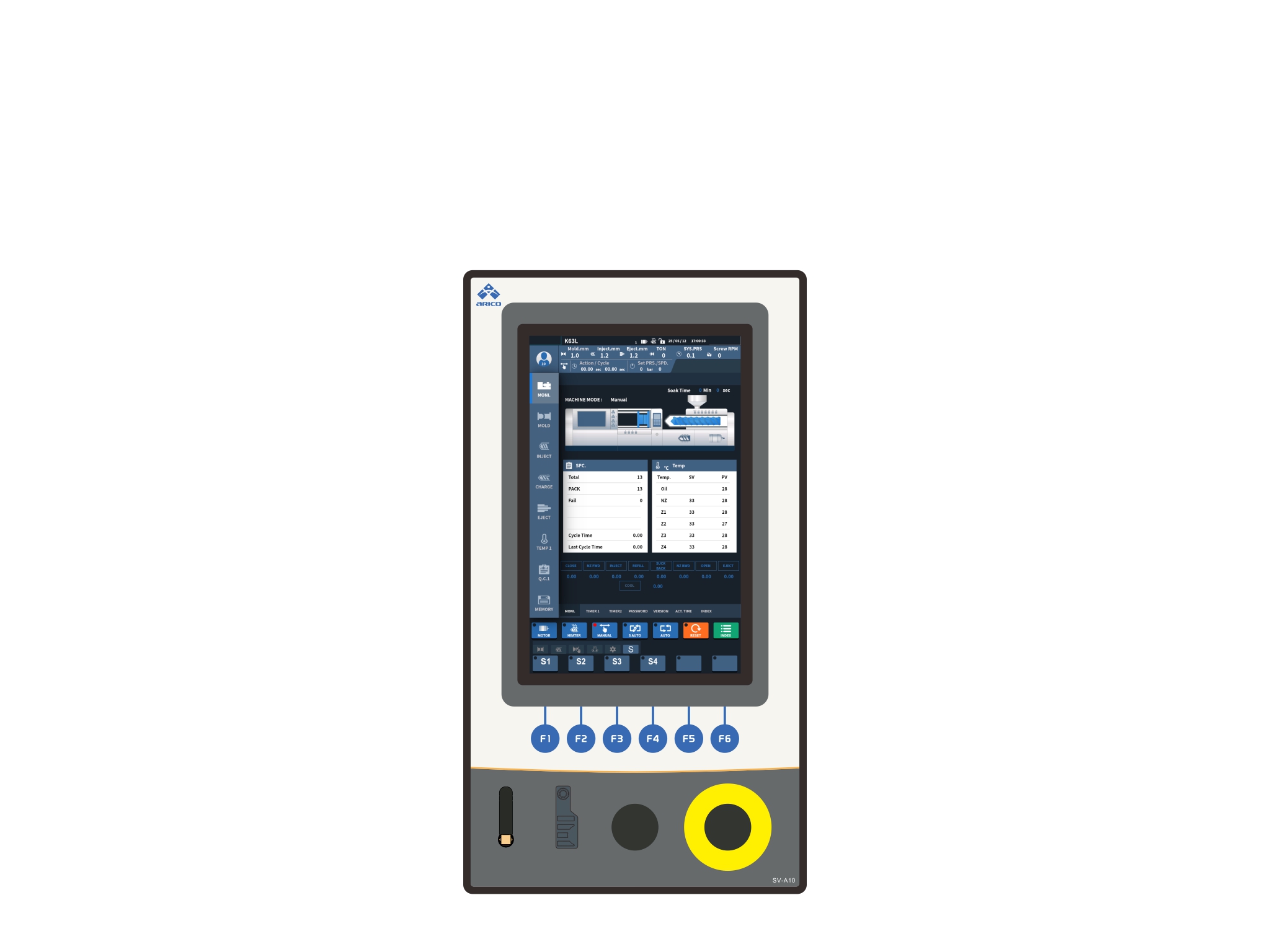

FTS HMI Controller
Overview
- Supports remote HMI monitoring and program updates for easier maintenance.
- The HMI can display screens from auxiliary equipment.
- Compatible with all AR series controller boards.
- Optional standalone operation panel.
- Full touch operation, with on-screen buttons freely configurable through software.
- Suitable for injection molding, extrusion, and blow molding machines.
- The FT Human-Machine Interface (HMI) allows for remote monitoring and control of machinery, as well as program updates and maintenance. It is ideal for long-running production lines and can display necessary information and data on the HMI screen to quickly identify and solve problems, increasing production efficiency.
- It can connect and operate with the AR series mainframe, and an independent motion control panel can be optionally selected to meet different operating environments and user requirements.
- The FT HMI is operated by touch, with customizable action buttons arranged through software for increased convenience.
- It is suitable for various types of machinery, and through communication, auxiliary machine parameters can be configured, all controlled through the same HMI interface, saving cost and time.
- 15.6"／17.3"／21.5" LCD
- 16:9 aspect ratio
- Fanless design
- In-built Wi-Fi
- Front Panel IP65 protection class
- 2G DDR3 RAM, 32G SSD ROM
- Industrial grade aluminum alloy structure
- Capacitive touch panel
